ITEM DESCRIPTION & SPECS
QTY: 200 Units
New Factory Sealed
Asking Price: $200 EA

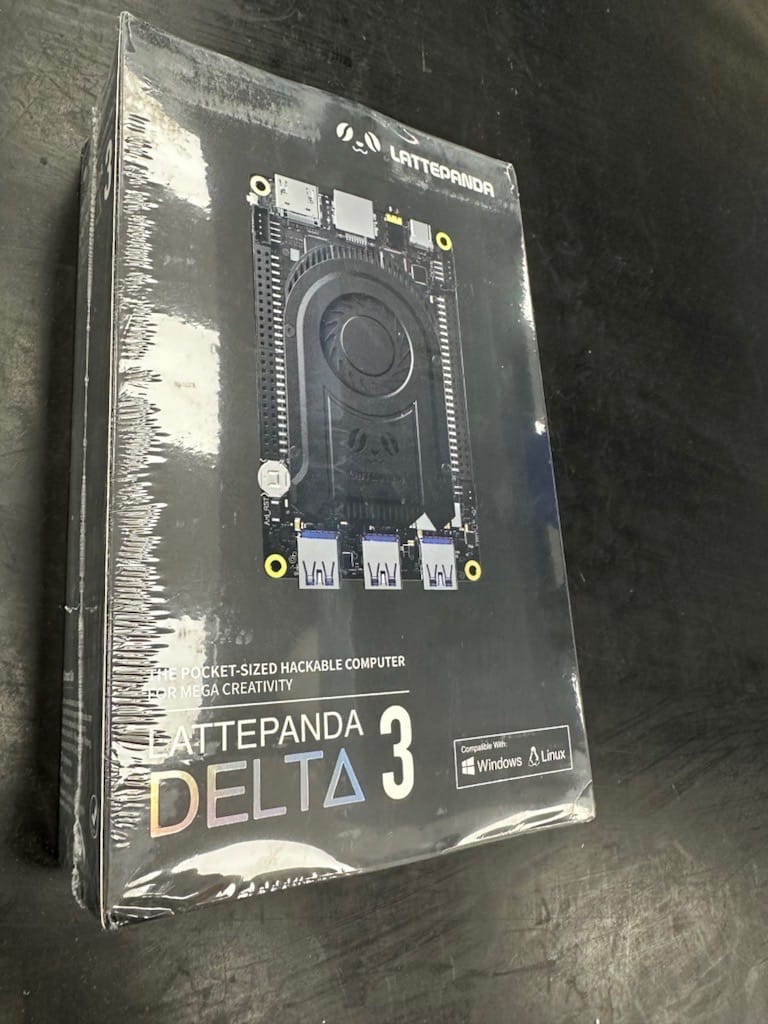

LattePanda 3 Delta Single Board Computer now features a 2.5G Ethernet port for superior performance!
ULTRA PERFORMANCE IN A POCKET SIZE
LattePanda 3 Delta is an x86 single board computer powered by the Intel N5105 quard-core processor. With the Intel turbo boost technology, it can reach speeds of up to 2.9 GHz. Compared to the previous LattePanda 2 Delta, the CPU speed has been doubled, while the GPU speed has been tripled. It's ideally suited for tasks such as image processing, edge computing, automation control, and more.
Features
Low-Power, High-Performance, Intel N5105 quad-core mobile processor with the 10W TDP
8GB RAM and 64GB eMMC, ensure smooth multitasking and reliable app performance
ULTRA-FAST connectivity: With a lightning-fast Wi-Fi 6 and 2.5 Gigabit Ethernet, stream videos or download massive files quickly
High-Speed Data Transfer: 1 x USB3.2 gen2, 2x USB 3.2 gen1, up to 20X faster than USB2.0
Dual 4K HDR and 3-Way Video Output, including HDMI, DisplayPort over USB-C, and eDP for superb flexibility
Dual M.2 Slot Expansion, M.2 B key for 4G/5G module and SATA SSD, M.2 M key for NVMe SSD
Rich GPIOs and Integrated Arduino Coprocessor ATmega32U4, compatible with 200+ sensors and actuators
Multiple OS Support,Windows (Windows 10 and Windows 11) & Linux (ubuntu, etc.) OS
Enhanced BIOS Function: Auto Power On, Watchdog Timer, Serial Port Redirection, etc.

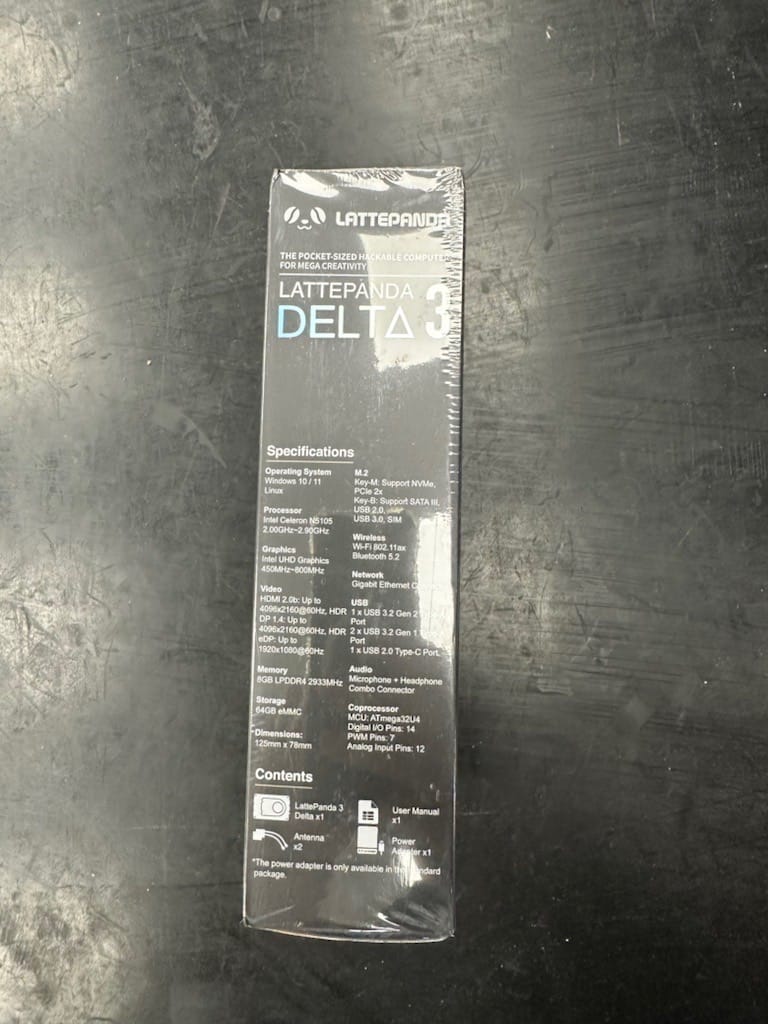

Specification
CPU: Intel® Celeron® N5105
Core: 2.0~2.9GHz Quad-Core, Four-Thread
Graphics: Intel® UHD Graphics (Frequency: 450 – 800MHz)
Memory: LPDDR4 8GB 2933MHz
Storage: 64GB eMMC V5.1
Expansion Slots:
1x M.2 M Key, PCIe 3.0 2x, Supports NVMe SSD
1x M.2 B Key, USB 2.0, USB 3.0, SIM, SATA(Option support PCIe 3.0 1x), Supports 4G & 5G module
Connectivity:
1x Wi-Fi 6 @ 2.4GHz &5 GHz(160MHz)
1x Bluetooth 5.2
1x Intel 2.5 Gigabit Ethernet
USB Ports:
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type A
1x USB Type C, Supports PD, DP, USB 2.0
1x USB 2.0 Pin Header
Display:
1x HDMI 2.0b: Up to 4096x2160 @ 60Hz HDR
1x DP 1.4: Up to 4096x2160 @ 60Hz HDR
1x eDP: Extendable Touch Displays up to 1920*1080
TPM: built-in TPM(2.0)
Co-processor: Arduino Leonardo ATMEGA32U4
Audio: Microphone + Headphone Combo Connector
GPIO & Other Features:
12x Analog Inputs*
Up to 23x Digital Input/Output (7 PWM)*
1x UART
1x I2C
1x SPI
1x Audio Connector
1x 4-Pin RS232 Header
1x Fan Port (4 Pin 1.25mm PWM 5V）
1x 4-Pin Header (Power and Switch)
OS Support: Windows 10 & Windows 11 & Linux
Dimension: 125 x 78 x 16mm
Operating Temperature: 0°C~75°C
|
